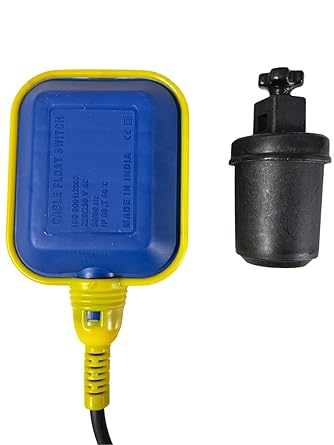

Water Float Switch Sensor for Water Level Controller (Float Sensor)
Water Float Switch Sensor for Water Level Controller (Float Sensor)
No reviews
Regular price
Rs. 300.00
Regular price
Rs. 499.00
Sale price
Rs. 300.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
About this item
- Degree of tightness: IP-68
- Maximum temperature: 60º C
- Rated Voltage:- 220-250V; Frequecy:- 50/60Htz; Rated Current:- 10A; Contacts:- NO+NC; Weight:- 625 Gm; Maximum Working Temperature:-60 c; IP Rating:- IP68

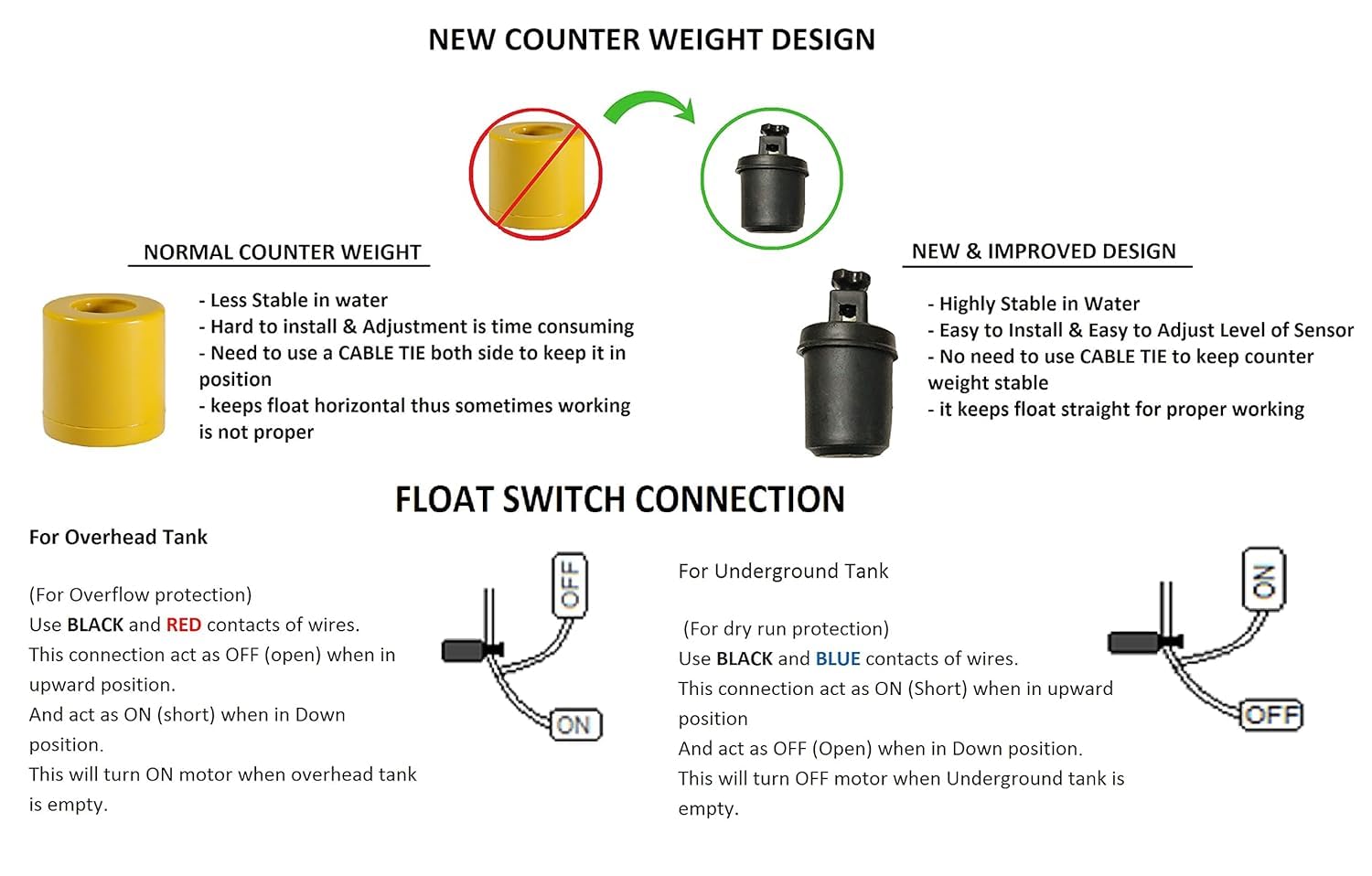

- Installation: Set the counterweight on the power cable to control the level. Connect the electric cable to the electric pump and then fix it inside the water tank. The length of the cable between the point of attachment of the article and the body of the article determines the water level. The power cord terminal should never be inserted into water during installation.

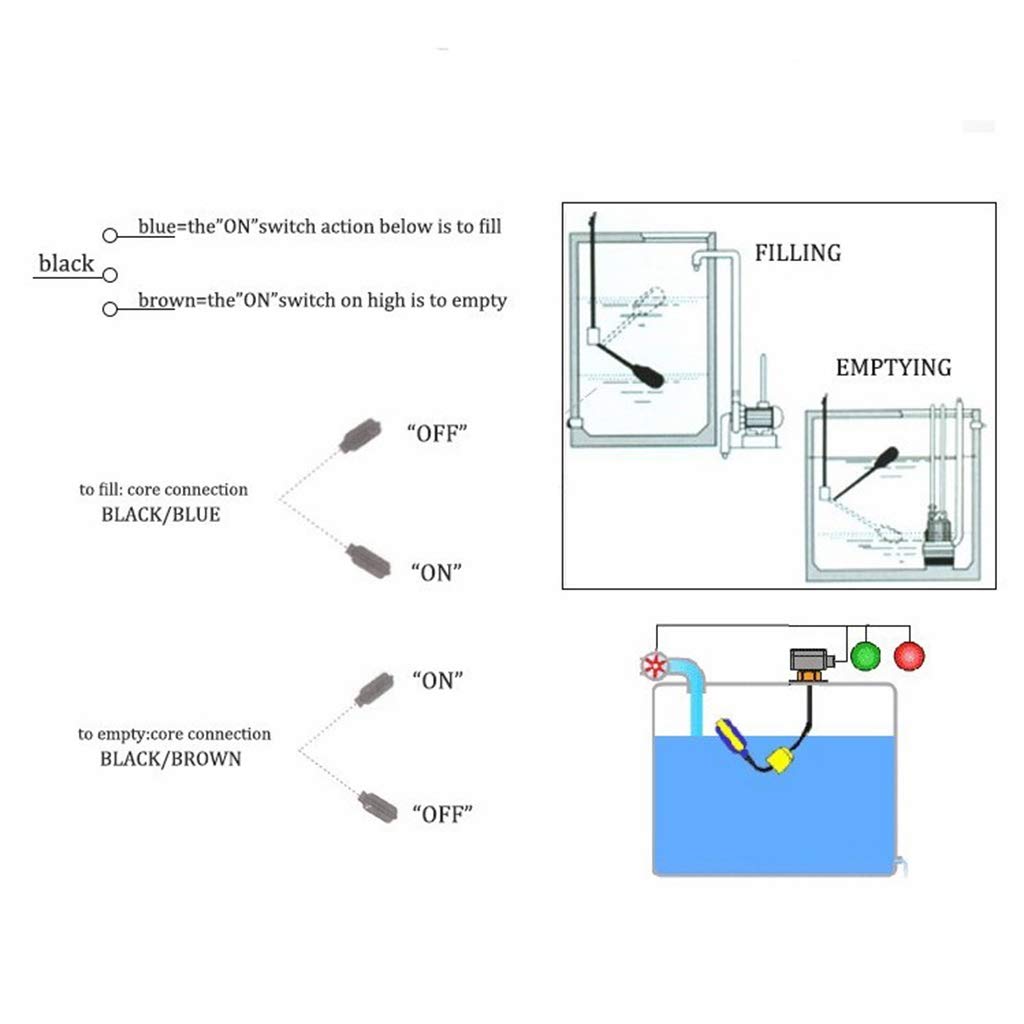

- Instructions for use for the filling operation. Connect the blue control cable to the electric pump and the black wire to the neutral wire as shown in the picture to fill it with water (the brown wire must be waterproof). The electric pump begins to fill with water and when the water in the tank reaches a level stops working.
- Instructions for use for the emptying operation. For the draining operation connect the brown cable to the water pump and the black cable to a neutral cable, as shown in the picture (the blue cable must be insulated). The electric pump stops when the water level reaches a level and if it exceeds this level it starts again to expel water.
-
Installation: Set the counterweight on the power cable to control the level. Connect the electric cable to the electric pump and then fix it inside the water tank. The length of the cable between the point of attachment of the article and the body of the article determines the water level. The power cord terminal should never be inserted into water during installation.
